SINOMAC INDUSTRIAL GROUP LIMITEDis a professional manufacturer of PCCP Pipe Machinery,Reinforced Concrete Pipe RCP Making Machine, Pipe Jakcing Machine,and so on.

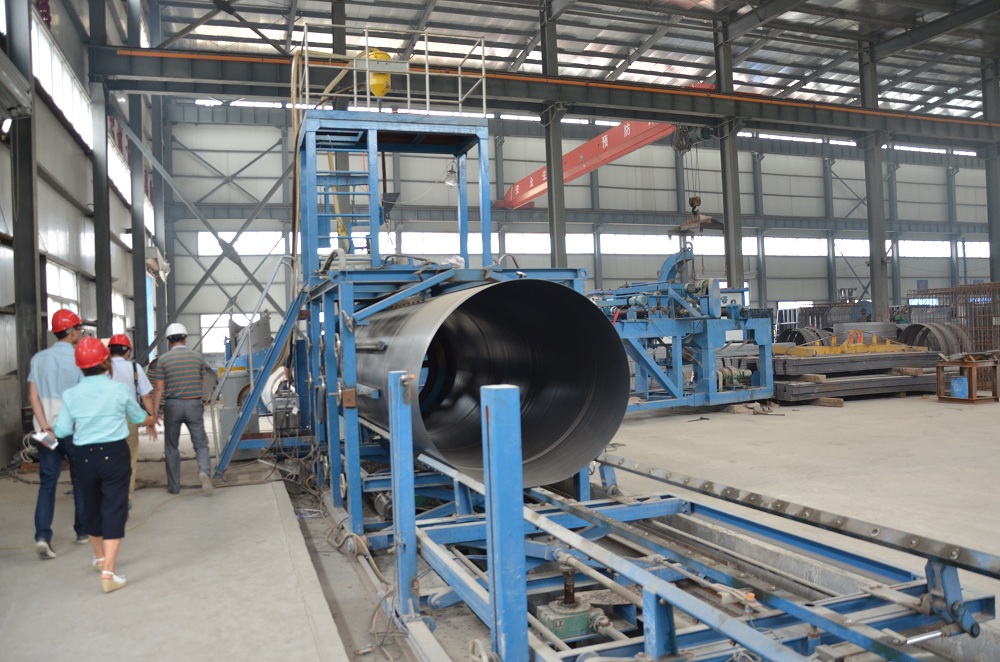

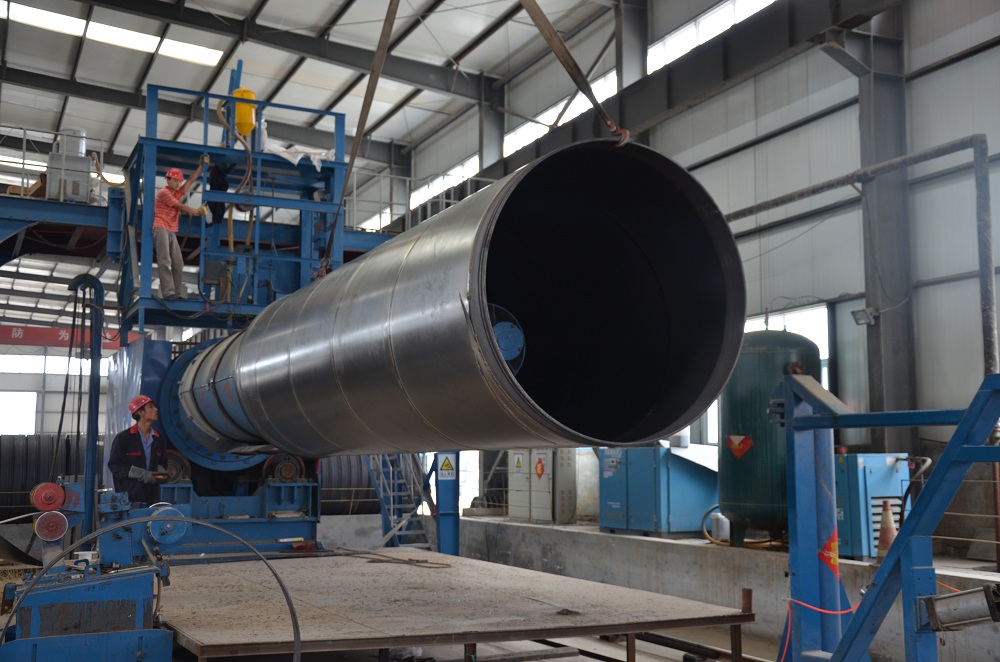

1.DN600-1600*6000mm Steel Cylinder Spiral Welding Machine
1.1The price including United States DC-600 Lincoln welding machine and steel belt feeding system/control panel. welding speed:0.5-2.5m/min.The price not including tube core.
1.2Application for GB/T5213-2008 standard provisions:thickness1.5-2mm,width 1250mm oil free cold rolled steel plate.
1.3PLC control, encoder tracking service,excellent control, forming the diameter deviation is less than 1 mm / 6000 mm.
1.4Use plasma cutting machine to cut automatic.
2.DN1400-3200*6000mm Steel Cylinder Spiral Welding Machine
2.1.he United States Lincoln welding machine, welding speed:0.5-2.5m/min
2.2Application for GB/T5213-2008 standard provisions:1.5-2.5mm oil free cold rolled steel plate.
2.3PLC control, encoder tracking service,excellent control,
2.4Main have electric control system/open-book leveling plate mechanism/door frame/rive structure/welding equipment frame structure/ welding machine/welding frame structure recovery unit/pneumatic mechanism, etc
